Asphericon
Location:
Jena
Completion:
2022
Asphericon
Location Stockholmer Straße 9 in Jena
The construction project comprises the erection of a multi-family house complex with 8 partially detached houses with a total of 65 residential units and two underground parking garages .
By accommodating the parking spaces in the basement, it will be possible to design the open spaces as green outdoor living areas.

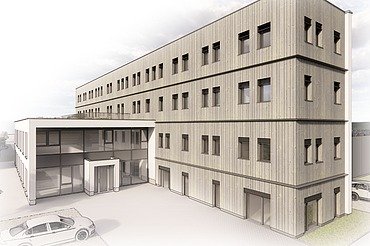

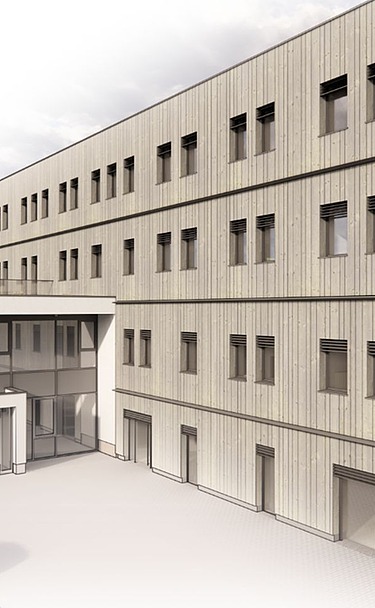

The building will be constructed using a hybrid timber construction method and will take 9 months to build. Due to the company's high growth rate, the construction project will create additional jobs and expand the company's product range.
The hybrid timber construction method is based on the optics company's commitment to sustainability. This has already been implemented since 2011 in the initial stages by dispensing with gas and oil for work and the operation of various sites.
The project is located in the JenA4 industrial estate between two existing buildings that are still in operation. The contract is worth EUR 2.619 million for the new building.
The project is aiming for DGNB "Sustainable Building Site" certification from the German Sustainable Building Council.
-
Characteristics
- Plot area (GF): 5,000 m²
- Gross cubic capacity (BRI): 5,402 m³
- Gross floor area (GFA):1,430 m²
- Above ground: 4 storeys
- Building area: 400 m²
-
Construction time
- Demolition and foundation from 31.03.22 to 30.05.22
- Structural work incl. facade and roof from 31.05.22 to 30.12.22
- Completion 30.12.2022
-
Construction site regular operation
- Monday to Thursday 07:00 to 17:00
- Friday 07:00 to 14:00
- There is generally no work on Saturdays, Sundays and public holidays.
Certified by the German Sustainable Building Council (DGNB)
Ed. Züblin AG is pursuing several goals with this project: A sustainable construction site organisation, the conservation of resources as well as the minimisation of emissions, responsibility for the health and well-being of the builders, the cultivation of good neighbourliness and, of course, high-quality construction. For this, Ed. Züblin AG was the first company to be recognised by the German Sustainable Building Council (DGNB).
Here you can find more information about the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site
Selected measures in the project
-
Finished parts
The extensive use of prefabricated parts (approx. 90%) (filigree slabs, prestressed concrete holding planks, stairs, cavity walls, Leno walls with façade, stairs) means that a shorter construction time can be achieved. The volume of waste is also reduced thanks to the prefabricated orders.
-
Logistics
Due to the very high degree of prefabrication of the components and the generous construction site set-up area, it is possible to utilize the transports almost completely and reduce the number of transports to and from the construction site to a minimum.
-
Measures to prevent pollution from the construction site
By using prefabricated reinforcement, buckets for concreting, 90% prefabricated parts and close coordination with the client, the loads from the construction site are avoided or reduced as much as possible.
-
Energy management in construction
The roof of the existing production hall was fully fitted with a photovoltaic system by the client. The energy generated from this is partly used for construction site operations.
-
Energy-saving lighting
The lighting in the office and crew containers is controlled by motion detectors. Energy-saving LED lights are used on the construction site. Their use for construction site lighting and in the containers conserves resources.
| Contact person for certification | Dr. Johannes Wall |
| Project contact | Sandra Wächter |
| Construction site address | Stockholmer Street 9 07747 Jena Phone +49 3641 591-413 ZÜBLIN Subdivision East Secretariat Unit Jena |
| Download | Press release |
| Link | DGNB: Certification |
