BORX
Location:
Hamburg
Completion:
2026
BORX
Location Normannenweg 2-12 in Hamburg

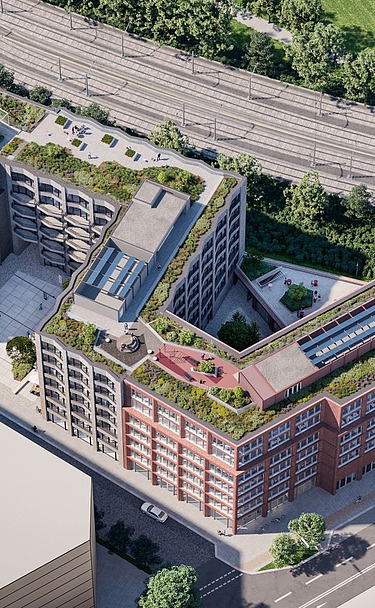

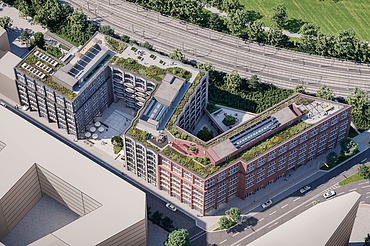

BORX is a new 7-storey office building with a two-storey underground car park and commercial and catering units on the ground floor.
The site is located in Borgfelde and is bordered by Eiffestraße to the north, Normannenweg to the east and the Deutsche Bahn and S-Bahn railroad line to the west.
The meandering building structure responds to the different situations and at the same time creates the conditions for spatial qualification. There is an open courtyard facing Normannenweg and two further courtyards facing the railroad, which are designed to be semi-public.
There are public areas on the ground floor, such as a fitness area, canteen, workshop, etc. The ground floor and parts of the first floor can be used by the public. The "Schaufenster" collection and exhibition area is located here. Conference rooms can also be found in this area. With the exception of the shop window on the 1st floor, office use extends across all floors.
The project is aiming for DGNB "Sustainable Building Site" certification from the German Sustainable Building Council.
-
Construction site camera
-
Characteristics
- Plot area (GF): 6,416 m²
- Gross cubic capacity (BRI): 140,200 m³
- Gross floor area (GFA): 37,100 m²
- Above ground: 7 storeys
- Underground: 2 storeys
-
Construction time
- Shell construction work from December 2023 to December 2024
- Façade from June 2024 to December 2025
- Expansion from April 2024 to December 2025
- Commissioning from February 2025 to February 2026
- Completion 2nd quarter 2026
-
Construction site regular operation
- Monday to Friday 07:00 to 20:00
- Saturday 07:00 to 16:00
- There is generally no work on Sundays and public holidays.
Certified by the German Sustainable Building Council (DGNB)
Ed. Züblin AG is pursuing several goals with this project: A sustainable construction site organisation, the conservation of resources as well as the minimisation of emissions, responsibility for the health and well-being of the builders, the cultivation of good neighbourliness and, of course, high-quality construction. For this, Ed. Züblin AG was the first company to be recognised by the German Sustainable Building Council (DGNB).
Here you can find more information about the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site
Selected measures in the project
-
Finished parts
The extensive use of prefabricated parts (cavity walls, stairs, etc.) means that a shorter construction time can be achieved. The volume of waste is also reduced thanks to the prefabricated orders.
-
Saving resources and reducing emissions through LEAN Construction
As part of the lean approach, a production plan with call-off dates (e.g. insulation) was created. Construction production planning is detailed on a weekly basis and adapted to actual production progress. Changes in the construction process are constantly taken into account and just-in-time deliveries can be better implemented. Repeat orders and new orders due to late changes to the plan are avoided.
-
Energy management in construction
All relevant energy sources (BE, cranes and containers) and energy consumption in the shell construction, expansion and commissioning phases are tracked on the project. Monitoring is carried out in a BI (Business Intelligence) system. Construction operations studies and comparative analyses for the most energy-efficient project execution possible. For example, selection of a large concrete bucket to reduce the number of lifts.
| Certification contact person | Katharina Schütt |
| Project contact | Berit Böttcher / Dirk Vogelgesang |
| Construction site address | Normannenweg 2-12, 20537 Hamburg Phone +49 40 20208-1001 ZÜBLIN Subdivision North Secretariat Unit for Turnkey Construction Hamburg / Mecklenburg-Vorpommern |
| Download | Press release |
| Link | DGNB: Certification |
