EDGE Friedrichspark Berlin
Location:
Berlin
Build time:
2023 - 2026
Client:
EDGE Wriezener Karree Berlin GmbH & Co KG / EDGE Technologies GmbH
EDGE Friedrichspark Berlin
Ed. Züblin AG is building a sustainable office complex in Berlin-Friedrichshain with around 39,000 m² of space, a green inner courtyard, innovative energy technology and flexible working environments.
The EDGE Friedrichspark construction project combines urban architecture with 100% fossil-free operation and sets new standards for sustainable working.
Urban architecture meets modern working environments
EDGE Friedrichspark is a pioneering office complex that combines sustainability, urban quality of life and modern working environments in a unique way. The new building consists of three buildings, two of which - structures B and C - are connected via a shared basement. The four floors above ground are primarily used as office space, while the second floor offers space for retail, restaurants and conference areas. In total, a gross floor area of around 39,000 m² will be created above ground, supplemented by 84 car parking spaces and over 550 bicycle parking spaces - a clear commitment to urban mobility.

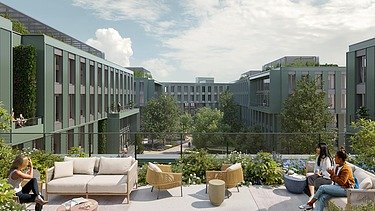

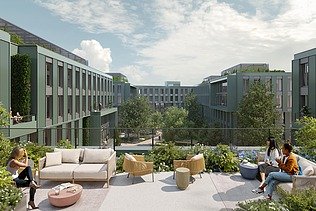

Green inner courtyard as a meeting place

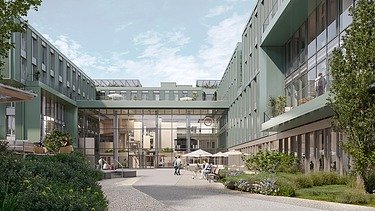

EDGE Friedrichspark sees itself as an urban campus with a high quality of stay. At its heart is a generously designed, 3,000 m² green inner courtyard, which serves as a place to meet, relax and be inspired. Employees can meet here to exchange ideas or use the outdoor sports areas for exercise during the working day. The architecture, designed by GRAFT Architekten in collaboration with DGI Bauwerk, focuses on openness, flexibility and a clear structure of the usage areas.
Innovative energy technology for CO₂-neutral operation
Particular attention is paid to the energy concept: The entire office complex is supplied with 100% CO2-neutral green electricity. The technical infrastructure is based on an innovative combination of an ice storage system, heat pumps and photovoltaic systems. More than 2,000 square meters of solar cells on the roofs actively supply electricity and make the building a pioneer for climate-friendly, CO₂-neutral operation.
Certified sustainability - DGNB and WELL Platinum
The sustainability goals are ambitious: EDGE Friedrichspark is aiming for DGNB Platinum certification and WELL Core & Shell Platinum certification. Both pre-certifications have already been achieved - an important milestone on the way to becoming one of Berlin's most sustainable office projects.

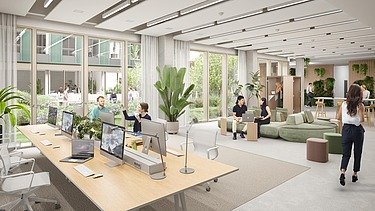

Flexible room concepts for new working models

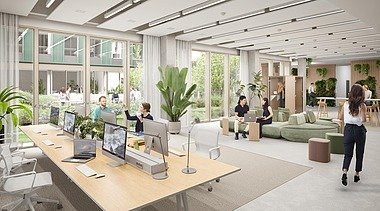

In addition to its ecological quality, the project also impresses with its social and functional orientation. The office spaces can be flexibly designed and enable both classic working models as well as hybrid and open-plan concepts. A total of over 2,000 workstations will be created, spread across indoor and outdoor areas. The integration of restaurants, sports facilities and retreat zones creates a working environment that promotes productivity and well-being in equal measure.
The location on Wriezener Karree in the immediate vicinity of Berlin Ostbahnhof makes EDGE Friedrichspark attractive: with direct public transport connections, short distances to the city center and a lively environment, the location is ideal for companies that want to combine urban working with sustainability and quality of life.
-
-
-
-
-
-
-

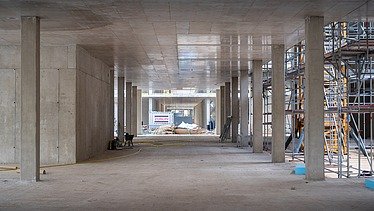

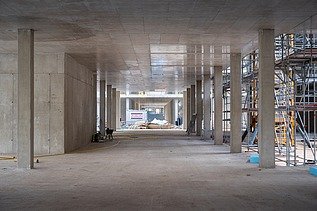

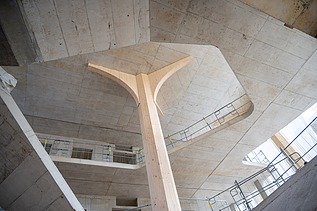

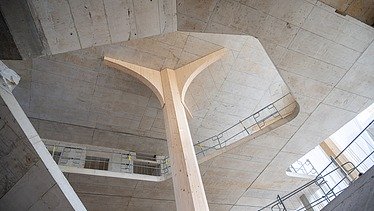

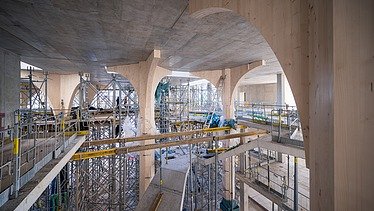

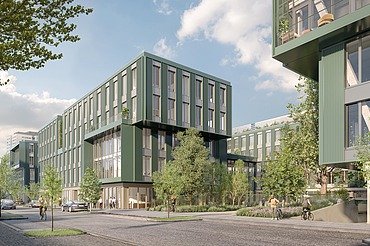

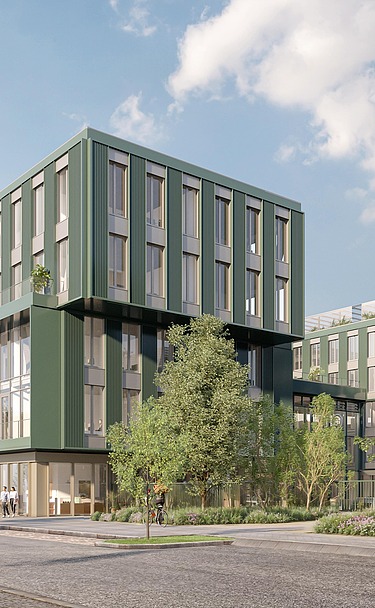

The storey and roof ceilings are designed as a reinforced concrete structure resting on load-bearing core walls and reinforced concrete columns. The basement and underground parking garage are also made of reinforced concrete. The façade of the standard storeys will be constructed using timber panels. The elaborately designed outdoor facilities also play an important role in the overall implementation.
The project is aiming for DGNB "Sustainable Building Site" certification from the German Sustainable Building Council.
-
Features
- Plot area (GF): 14,220 m²
- Gross floor area (GFA): 181,473 m³
- Gross floor area (GFA): 48,120 m²
- Above ground: 5 storeys
- Underground: 1 underground storey, building section B + C
-
Construction time
- Earthworks Q3/23 to Q2/24, duration: 46 KW
- Shell construction and finishing Q1/24 to Q1/26, duration: 113 KW
-
Regular operation on the construction site
- Monday to Friday 07:00 to 19:00
- Saturday 07:00 to 15:00
- As a rule, we do not work on Sundays and public holidays.
Certified by the German Sustainable Building Council (DGNB)
Züblin AG is pursuing several goals with this project: A sustainable construction site organization, the conservation of resources as well as the minimization of emissions, the responsibility for the health and well-being of the building owners, the maintenance of a good neighbourhood and, of course, a high construction quality. Ed. Züblin AG was the first company to be recognized for this by the German Sustainable Building Council (DGNB).
Here you can find more information on the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site
Selected measures in the project
-
CO2-reduced concrete
CO2-reduced concrete was used to achieve CO2 savings in conventional reinforced concrete construction. This accounts for almost 50% of the total amount of concrete used and was used for the floor slabs, walls and columns.
-
Façade construction made of wood and 100% recycled aluminum

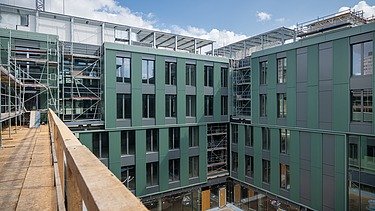

The façade consists of a supporting structure in timber frame construction and cladding made of meandering sheet metal, which has a secondary raw material content of 100%, i.e. is made entirely from recycled aluminum.
-
Energy supply (ice storage)
The focus of the technical building services design is the 1000 m3 ice storage tank, which will ensure the building's energy supply in conjunction with photovoltaic systems and heat pumps.
-
Sustainability target 25%
Together with the entire project team, including the client and project management, a joint target was agreed when the contract was signed that at least 25% of all materials used must be made from recycled or natural materials.
-
Measures to prevent environmental pollution from the construction site
The project is located in the city center so that the impact of the construction site is avoided or reduced as much as possible.
-
Use of energy-efficient construction machinery
It is planned to document all motorized equipment and machinery used on the construction site, e.g. earthmoving machines, compressors, etc., with an output of more than 75 kW and to record which EU level (energy efficiency class/EEK) they correspond to in order to ensure that the most energy-efficient construction machinery possible is used.
-
Regional companies and suppliers
Wherever possible, mainly regional companies and suppliers are used in order to shorten transportation and working distances.
-
Health and social affairs
The risk of accidents is reduced through the creation and application of comprehensive health and safety documents. They also help to maintain employee performance.
-
Quality of the construction work
Before the order is placed, material declaration lists are used to check whether building materials and components comply with the recognized rules of technology and the contractual agreements. A target/actual comparison of the building materials supplied is carried out by means of an incoming goods inspection. Before and during construction, compliance with the technical regulations is documented using quality inspection plans.
-
Waste management
An effective waste management system will be set up for the project. Targeted waste sorting and separation will be carried out on the construction site. This will ensure that the construction waste produced is disposed of and/or recycled properly.
| Contact person for certification | Paula Schmidt |
| Contact the project | Andreas Lemkens |
| Address of the construction site | Wriezener Karree 15, 10243 Berlin Phone +49 30 203950-0 ZÜBLIN North-East Subdivision Secretariat Berlin unit |
| Download | Press release |
| Link | DGNB: Certification |
