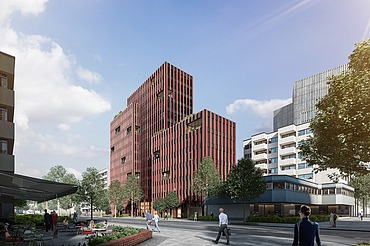

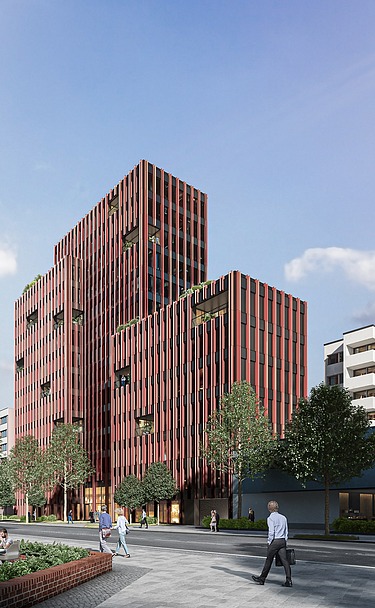

Visualization office building
Visualization office building © kadawittfeldarchitektur / loomilux

RED City West

Location:
Berlin

Completion:
2026

Back to Projects

RED City West

Location Landgrafenstraße 3-6 in Berlin
Attractive office space with a high quality of stay is being created on the 5,856 m² site of the former Golden Tulip hotel complex on around 15,463 m² (above ground) in Berlin's Mitte district .

The new building is being constructed as a 14-storey, approx. 53m long, stepped high-rise with roof terraces, integrated loggias and courtyard gardens, providing space for peace and development. In addition to a predominantly green front area facing the street, a variety of open spaces will be created in the courtyard area.

The building is to be certified with the "DGNB Gold" seal. The building is characterized by low energy consumption during operation combined with very good comfort thanks to the use of ventilation ceiling systems with heating and cooling functions and an aluminium pilaster strip façade with a vertical structure that uses recycled aluminium. In addition, an underground car park as well as various technical rooms, bicycle parking spaces, etc. with a gross floor area of approx. 3,581 m² will be built below the building.

The project is aiming for DGNB "Sustainable Building Site" certification from the German Sustainable Building Council.

  • Characteristics
    • Plot area (GF): 5,855 m²
    • Gross floor area below ground: 3,581 m²
    • Gross floor area above ground: 15,463 m²
  • Construction time
    • Excavation pit from September 2023 to April 2024
    • Shell construction work from April 2024 to July 2025
    • Building envelope from January 2025 to December 2025
    • Expansion from February 2025 to January 2026
    • Completion March 2026
  • Construction site regular operation
    • Monday to Friday 07:00 to 19:00
    • Saturday 07:00 to 15:00
    • There is generally no work on Sundays and public holidays.

Certified by the German Sustainable Building Council (DGNB)

Ed. Züblin AG is pursuing several goals with this project: A sustainable construction site organization, the conservation of resources as well as the minimization of emissions, responsibility for the health and well-being of the builders, the cultivation of good neighbourliness and, of course, high-quality construction. For this, Ed. Züblin AG was the first company to be recognized by the German Sustainable Building Council (DGNB).

Here you can find more information about the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site

Selected measures in the project

  • Precast parts/formwork

    The primary use of precast concrete elements (cavity walls, filigree slabs and columns) and masonry makes it possible to reduce formwork work to a minimum. The ceilings are constructed exclusively with filigree ceiling elements.
    Two building construction cranes are used for the on-site transportation of both precast elements and formwork. This significantly reduces sources of noise caused by moving formwork elements. The volume of waste is also reduced thanks to the prefabricated orders.

  • Reinforcement work

    The reinforcement bars installed on the construction site are prefabricated in the factory, i.e. adapted to the exact installation location on the construction site in terms of length and shape and transported to their respective installation location by the building construction cranes. This eliminates noise emissions caused by shaping and adjusting the reinforcement.

  • Saving resources and reducing emissions through LEAN Construction

    As part of the lean approach, a production plan with call-off dates (e.g. insulation) was created. Construction production planning is detailed on a weekly basis and adapted to actual production progress. Changes in the construction process are constantly taken into account and just-in-time deliveries can be better implemented. Repeat orders and new orders due to late changes to the plan are avoided.

  • Energy management in construction

    Construction site investigations and comparative considerations for the most energy-efficient project execution possible. For example, selection of a large concrete bucket to reduce the number of lifts.

Certification contact person Dr. Johannes Wall
Project contact Lydia Willmann-Martin
Construction site address Landgrafenstrasse 3-6
10787 Berlin
