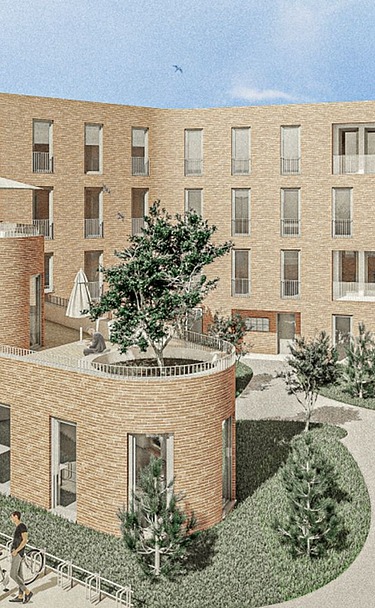

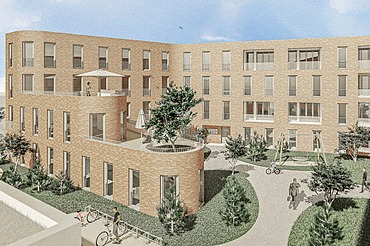

Building sign BV Volksbank Kelkheim
Building sign BV Volksbank Kelkheim © Bauschild BV Volksbank Kelkheim

Volksbank Kelkheim

Location:
Kelkheim

Completion:
2024

Back to Projects

Volksbank Kelkheim

Location Frankfurter Strasse 34-36 in Kelkheim (Taunus)
An apartment building with thirty-eight residential units and a two-storey underground garage is being built for Frankfurter Volksbank in the center of Kelkheim am Taunus.

The plot is located at the rear of the Volksbank, which was used as a parking lot. The development will create additional living space in the center of Kelkheim. The exterior façade of the building is finished with a light-colored render and the interior façade is clad with clinker brick slips.

The project is aiming for DGNB "Sustainable Building Site" certification from the German Sustainable Building Council.

  • Characteristics
    • Gross floor area (GFA): 8,085 m²
    • Above ground: 4 storeys
    • Underground: 1 storey
  • Construction time
    • Civil engineering work from 13.06.2022 to 16.11.2022
    • Shell construction work from 29.08.2022 to 31.05.2023
    • Building envelope from 01.02.2023 to 27.09.2023
    • Expansion from 24.02.2023 to 27.02.2024
    • Completion 05.05.2024
  • Construction site regular operation
    • Monday to Friday 07:00 to 22:00
    • Saturday (in exceptional cases) 08:00 to 18:00
    • There is generally no work on Sundays and public holidays.

Certified by the German Sustainable Building Council (DGNB)

Ed. Züblin AG is pursuing several goals with this project: A sustainable construction site organisation, the conservation of resources as well as the minimisation of emissions, responsibility for the health and well-being of the builders, the cultivation of good neighbourliness and, of course, high-quality construction. For this, Ed. Züblin AG was the first company to be recognised by the German Sustainable Building Council (DGNB).

Here you can find more information about the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site

Selected measures in the project

  • Finished parts

    The extensive use of prefabricated parts (stairs, cavity walls and filigree slabs) as well as flat blocks means that a shorter construction time can be achieved. These prefabricated orders also reduce the amount of waste.

  • Saving resources and reducing emissions through LEAN Constructio

    As part of the lean approach, a production plan with call-off dates (e.g. insulation) was created. Construction production planning is detailed on a weekly basis and adapted to actual production progress. Changes in the construction process are constantly taken into account and just-in-time deliveries can be better implemented. Repeat orders and new orders due to late changes to the plan are avoided. A digital cycle control system is used for precise process planning.

  • Measures to prevent pollution from the construction site

    The project is located in the city center, so the impact of the construction site will be avoided or reduced as much as possible.

  • Energy management in construction

    Construction site investigations and comparative considerations for the most energy-efficient project execution possible. For example, selection of a large concrete bucket to reduce the number of lifts and use of energy-efficient LED lighting.

Certification contact person Stefan Kleinfeldt
Project contact Siavosh Hashemi
Construction site address Frankfurter Strasse 34-36
65779 Kelkheim (Taunus)
