Scale breeds BF 20
Location:
Kappeln
Completion:
2025
Scale breeds BF 20
Location Lindaunis-Weg 3 in Kappeln

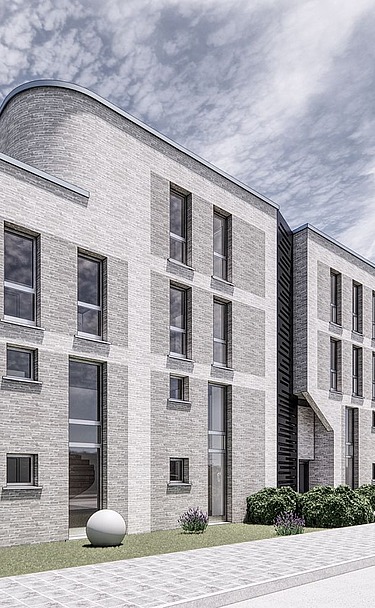

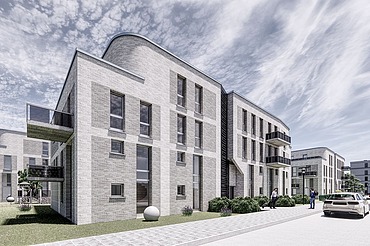

The residential complex consists of 80 residential units spread over four buildings with a first floor, two upper floors and one staggered floor each.
In the basement, the four buildings are connected by an underground garage with 55 parking spaces. The technical rooms, cellar storage rooms, laundry rooms and bicycle storage rooms are housed here.
The project is aiming for DGNB "Sustainable Building Site" certification from the German Sustainable Building Council.
-
Construction site camera
-
Characteristics
- Plot area (GF): 5,732 m²
- Developed area (BF): 2,187 m²
- Gross floor area (GFA): 21,553.52 m³
- Gross floor area (GFA): 5,627.51 m²
- Above ground: 3 storeys
- Underground: 1 storey
-
Construction time
- Shell construction work from January 2024 to September 2024
- Building envelope from July 2024 to February 2025
- Expansion from August 2024 to July 2025
- Completion August 2025
-
Construction site regular operation
- Monday to Friday 07:00 to 19:00
- Saturday 07:00 to 15:00
- There is generally no work on Sundays and public holidays.
Certified by the German Sustainable Building Council (DGNB)
Ed. Züblin AG is pursuing several goals with this project: A sustainable construction site organization, the conservation of resources as well as the minimization of emissions, responsibility for the health and well-being of the builders, the cultivation of good neighbourliness and, of course, high-quality construction. For this, Ed. Züblin AG was the first company to be recognized by the German Sustainable Building Council (DGNB).
Here you can find more information about the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site
Selected measures in the project
-
Finished parts
The extensive use of prefabricated parts (filigree slabs, balconies and stairs) means that a shorter construction time can be achieved. The volume of waste is also reduced thanks to the prefabricated orders.
-
Pump concreting
The concreting of larger sections, such as ceilings, is carried out using a concrete pump, which is continuously filled with concrete by truck mixers and ensures rapid completion of the component thanks to its high performance. Due to the short duration and high performance, the noise and dust impact can be significantly reduced.
-
Saving resources and reducing emissions through LEAN Construction
As part of the lean approach, a production plan with call-off dates (e.g. insulation) was created. Construction production planning is detailed on a weekly basis and adapted to actual production progress. Changes in the construction process are constantly taken into account and just-in-time deliveries can be better implemented. Repeat orders and new orders due to late changes to the plan are avoided.
-
Energy management in construction
Construction site investigations and comparative considerations for the most energy-efficient project execution possible. For example, selection of a large concrete bucket to reduce the number of lifts.
| Certification contact person | Britta Nordmeyer |
| Project contact | Frank Löwenstrom |
| Construction site address | Lindaunis-Weg 3 24376 Kappeln Phone +49 40 20208-1421 ZÜBLIN Subdivision North Secretariat Hamburg/Schleswig-Holstein unit |
| Download | Press release |
| Link | DGNB: Certification New building and construction project in Kappeln > MienAnker |
