Safranberg Residential Complex
Location:
Ulm
Build time:
3/2022 - 12/2023
Client:
Wohnungsbau Oberland eG
Safranberg Residential Complex
A residential complex consisting of two buildings was built on Safranberg in Ulm.

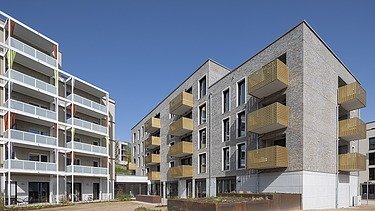

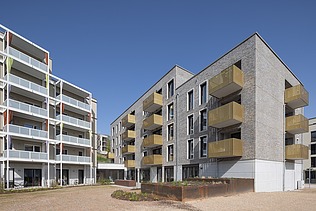

The construction project comprises the new construction of 2 residential buildings with 5 and 6 storeys, a total of 40 apartments and a shared underground garage. House 1 was built using a timber hybrid construction method, while House 2 was constructed using conventional solid construction and an ETICS façade with clinker brick slips.
House 2 houses a day care facility, a senior citizens' residential community and two outpatient assisted living communities. There are 7 serviced apartments on the 2nd floor, where residents in need can book various optional services through the operator of the day care facility.
Special features
- Excavation pit excavation in rock with very large excavation depths and shoring work
- Hybrid timber construction with solid timber exterior walls and timber-concrete composite ceilings (House 1)

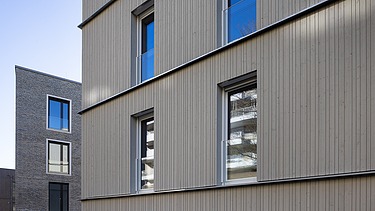

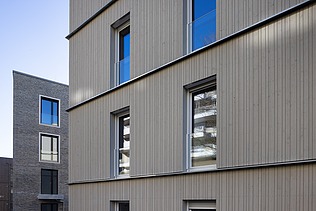

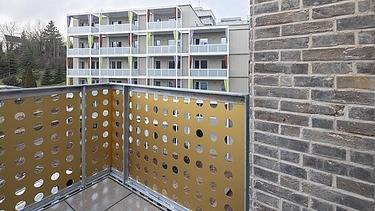

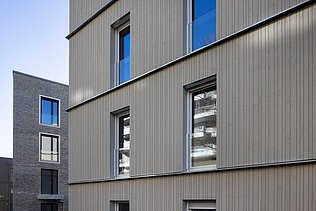

- Rear-ventilated timber façade with aluminum balcony system in front (House 1)

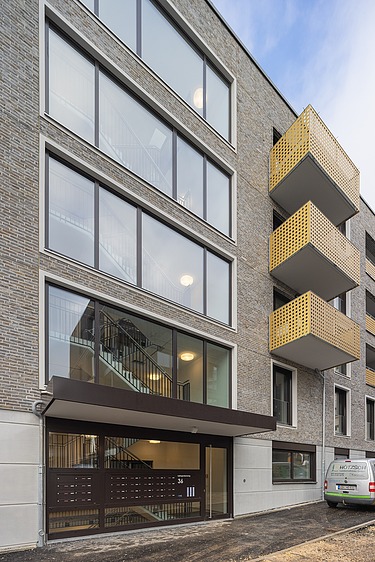

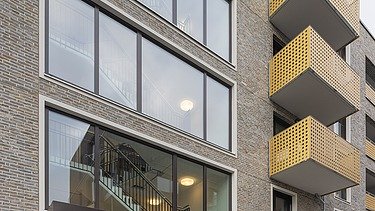

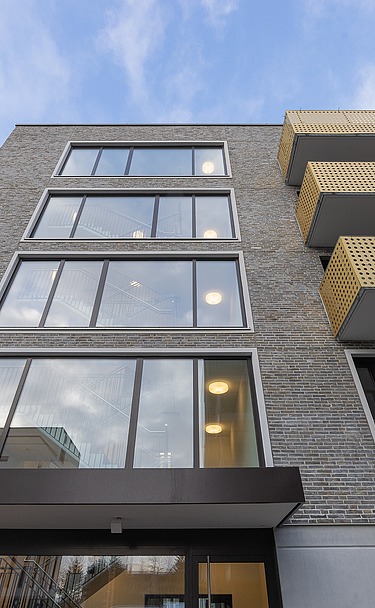

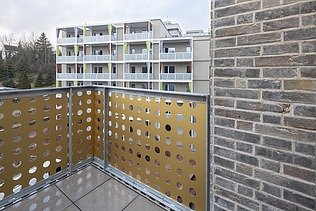

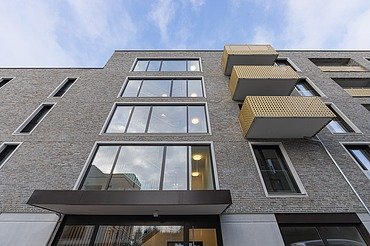

- ETICS façade with clinker brick slips (house 2)
- Elaborate outdoor facilities with natural stone ashlar walls on a slope
- Double parking facilities for 20 car parking spaces in the underground garage
-
-
-
-
-
Characteristics
- Gross cubic capacity (BRI): approx. 21,000 m³
- Gross floor area (GFA): approx. 5,900 m²
-
Construction time
- Shell construction work from 09.05.2022 to 02.12.2022
- Building envelope from 10.10.2022 to 16.06.2023
- Expansion from 16.01.2023 to 10.11.2023
- Completion December 2023
-
Construction site regular operation
- Monday to Friday 07:00 to 17:00
- Saturday 07:00 to 13:00
- There is generally no work on Sundays and public holidays.
Certified by the German Sustainable Building Council (DGNB)
Ed. Züblin AG is pursuing several goals with this project: A sustainable construction site organisation, the conservation of resources as well as the minimisation of emissions, responsibility for the health and well-being of the builders, the cultivation of good neighbourliness and, of course, high-quality construction. For this, Ed. Züblin AG was the first company to be recognised by the German Sustainable Building Council (DGNB).
Here you can find more information about the DGNB system for sustainable construction sites: https://www.dgnb.de/en/certification/buildings/construction-site
Selected measures in the project
-
Special features
Due to the location of the site, the focus was on precast elements such as reinforced concrete cavity walls, filigree slabs, staircases and prefabricated balconies.
System formwork and prefabricated reinforcement are also used for additional concreting work. This saves storage space and time and thus minimizes noise and dust pollution as well as traffic restrictions for local residents.
This is also supported by the use of modern machinery for concrete pumps, compressors, excavators and concrete pumps.
Electricity and water are metered on the construction site. Most of the construction lighting in the building is provided by LED strip lighting.
A special feature of the project is a timber hybrid construction in House 1. The load-bearing exterior walls from the first floor upwards are made of LENO cross-laminated timber prefabricated parts, with the ceiling elements being realized with a timber-concrete composite construction. This further minimizes construction time, noise pollution and the CO² balance.
| Certification contact person | Markus Oesterle |
| Project contact | Jochen Steiger |
| Construction site address | Leimgrubenweg 36-38 89075 Ulm Ed. Züblin AG, Subdivision Ulm, Unit Neu-Ulm |
| Download | Press release |
| Link | DGNB: Certification |
